QuickstartΒΆ
This is an example of modeling systems annual performance with no shade.
from solpy import pv
import json
jsonstring = """
{"system_name":"System Name",
"zipcode":"17601",
"tilt":34,
"azimuth":180,
"phase":1,
"voltage":240,
"array":[
{"inverter":"SMA America: SB6000US 240V",
"panel":"Mage Solar : USA Powertec Plus 250-6 MNCS",
"series":14,
"parallel":2}
]
}"""
plant = pv.json_system(json.loads(jsonstring))
print plant.model()
#Year 1 Annual _output: 8395.12 kWh

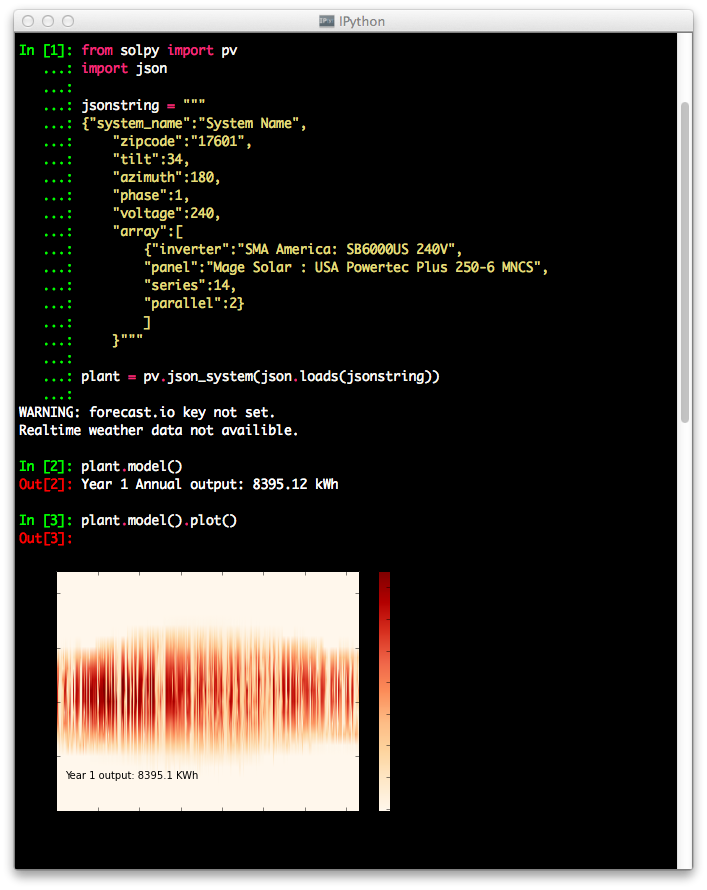

Annual Output can be plotted.
Annual output can also be charted.
It is also possible to do some basic forecasting using NOAA GFS or forecast.io
